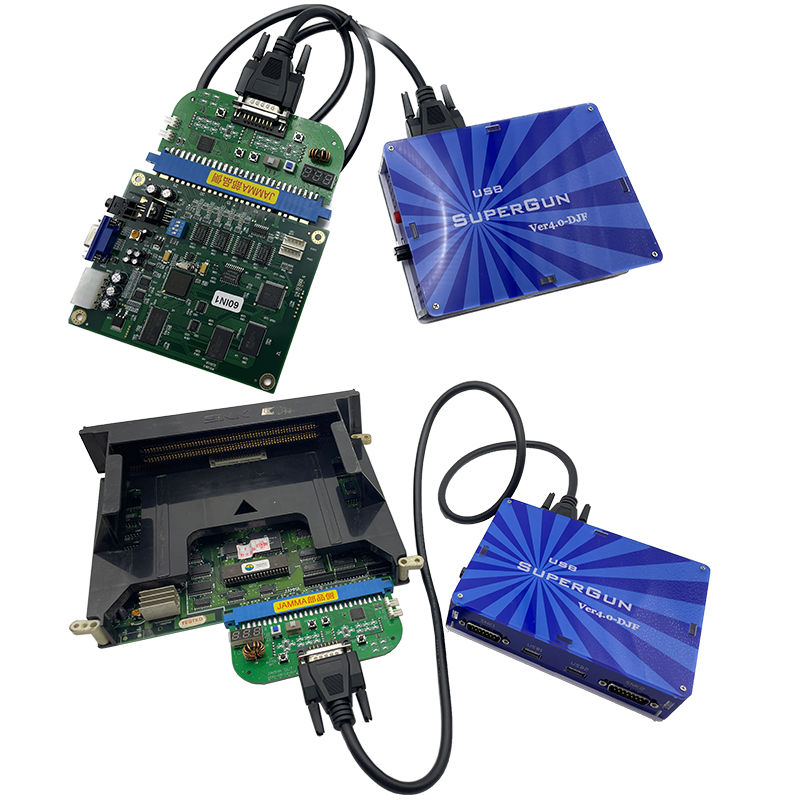

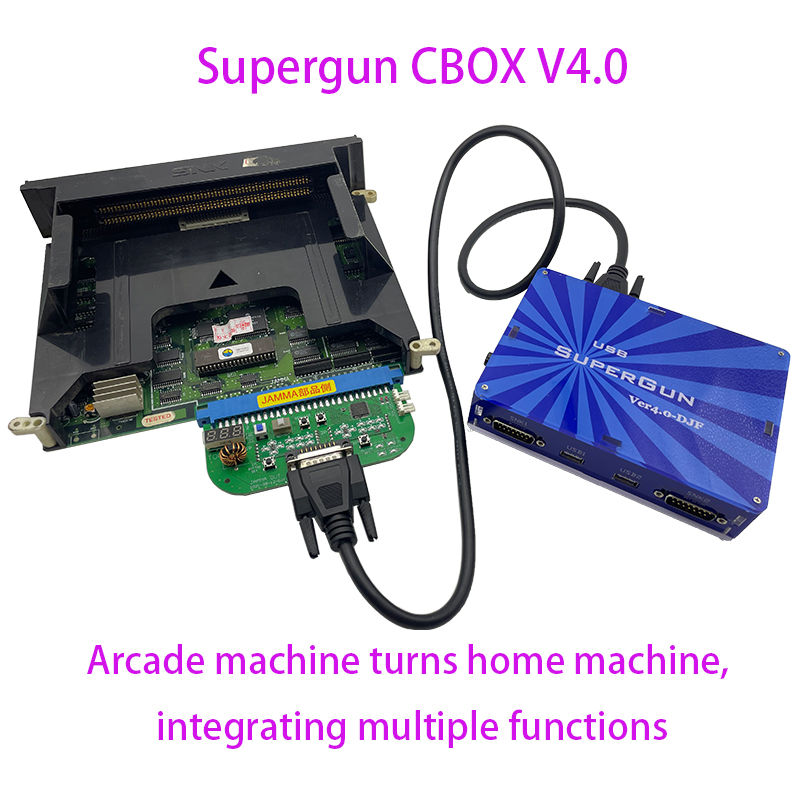

The arcade machine is converted to home use, and it can realize multiple functions in one integration. It is as easy to use as ordinary game consoles. It is small in size and no longer has problems such as flying wires everywhere and bulky power supply.

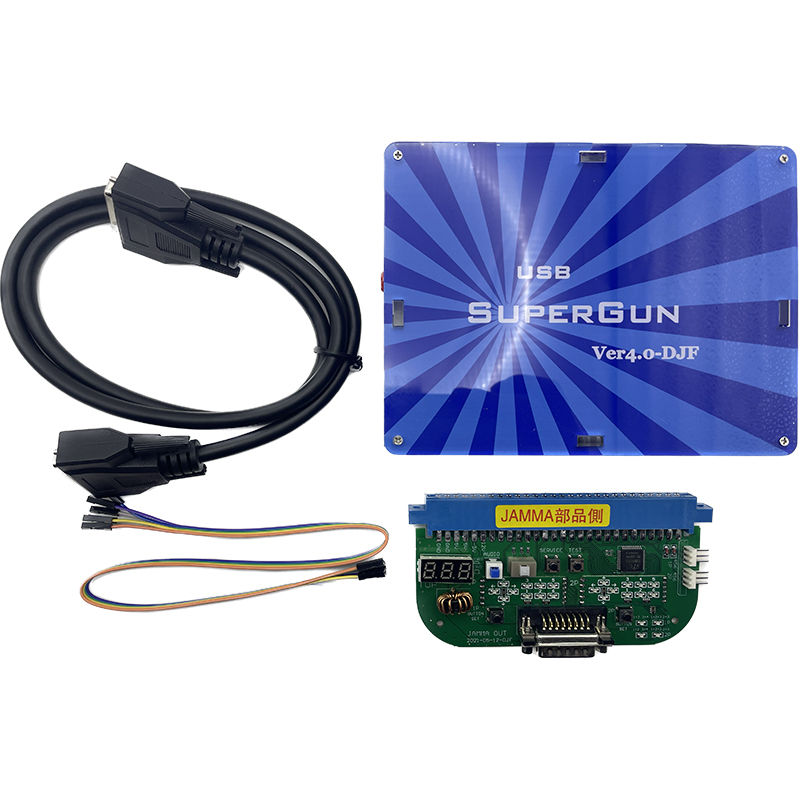

1. The extension cable jamma board is externally designed, and the buttons/shots/combinations can be set freely, which is more convenient to use.

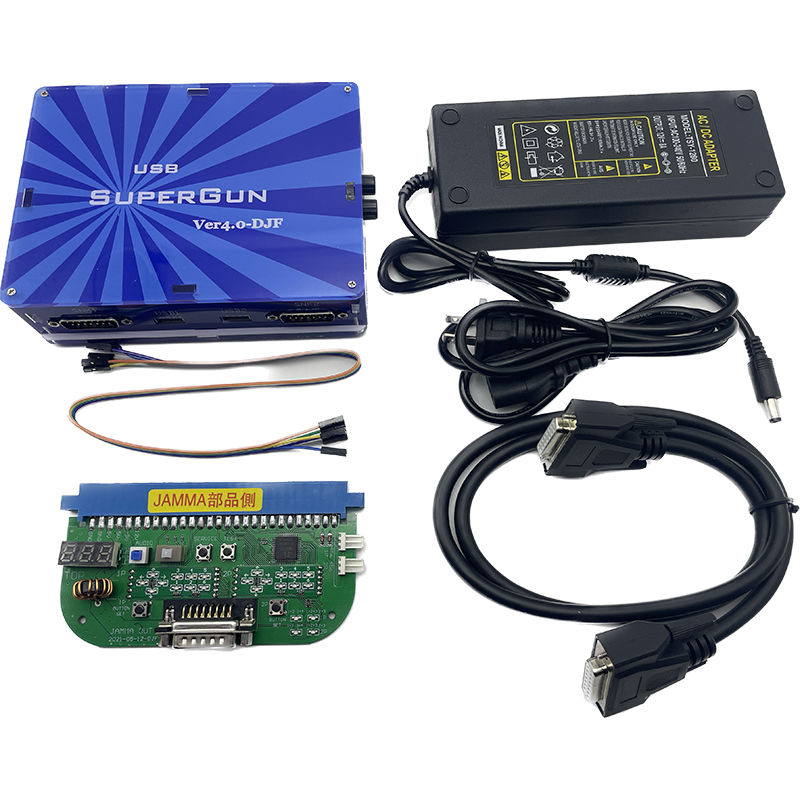

2. 12v high-power design, can output 10A current, SNK 6 seats can also drive. With polarity protection, you will not be afraid of the problem of wrong plugging and anti-burning, and no bulky power supply is needed. The power supply can use 12v6a or more to support the positive and negative of the 5.5*2.5 interface.
3. The 5V output supports an old board sound problem.

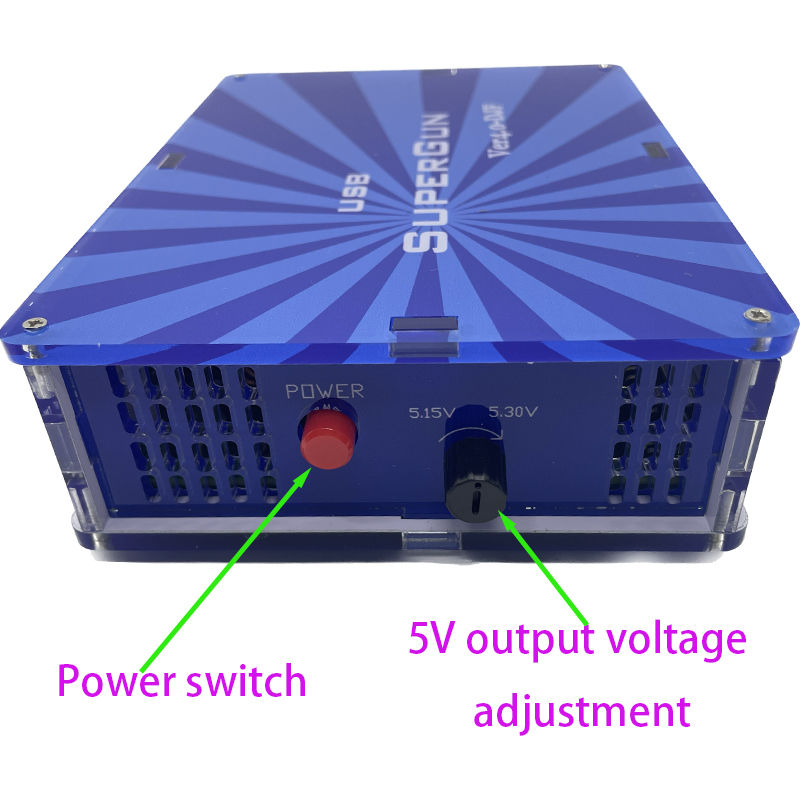

4. 5V adjustment function

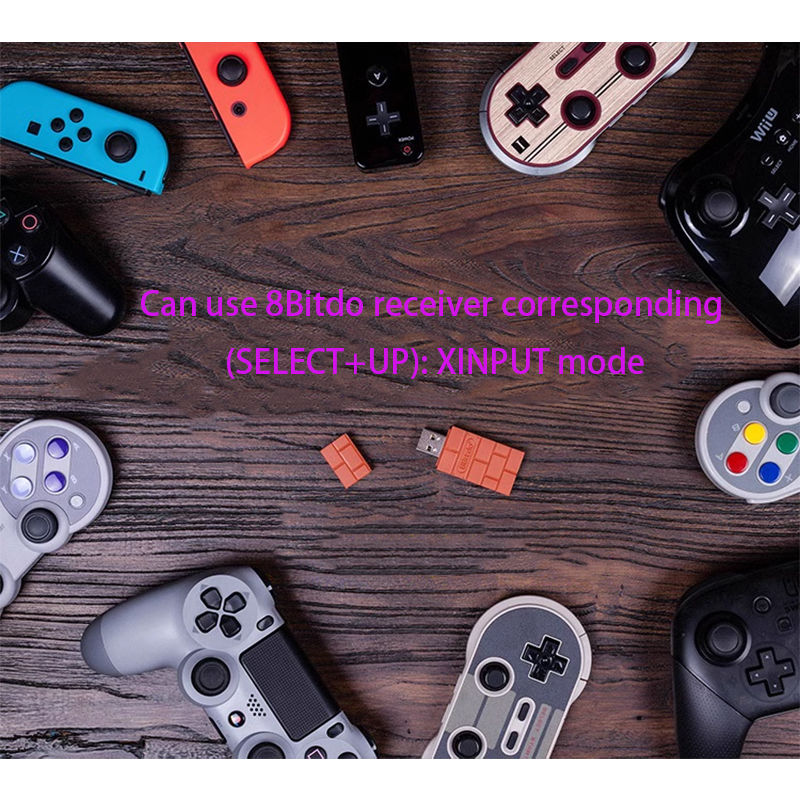

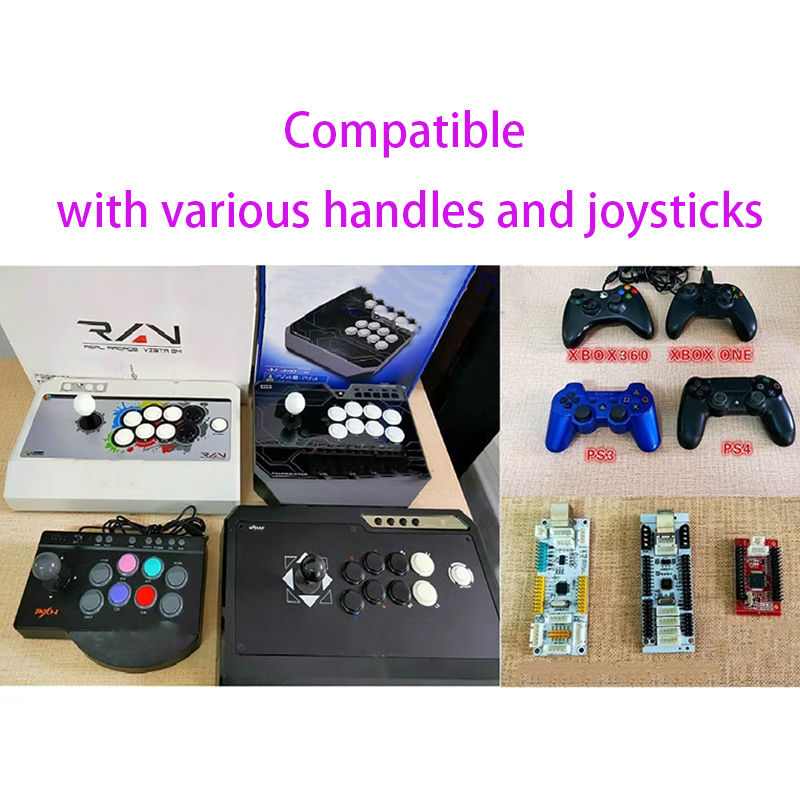

5. The USB interface supports PS3/PS4/XBOX360/XBOX ONE joysticks and joysticks. There are many joysticks and joysticks on the market that can't be tested one by one. Generally, the joysticks that support PS3/4 are selected.
6. SNK/DB15 interface, support NEOGEO handle and joystick/self-made joystick, according to the interface marked on the picture.

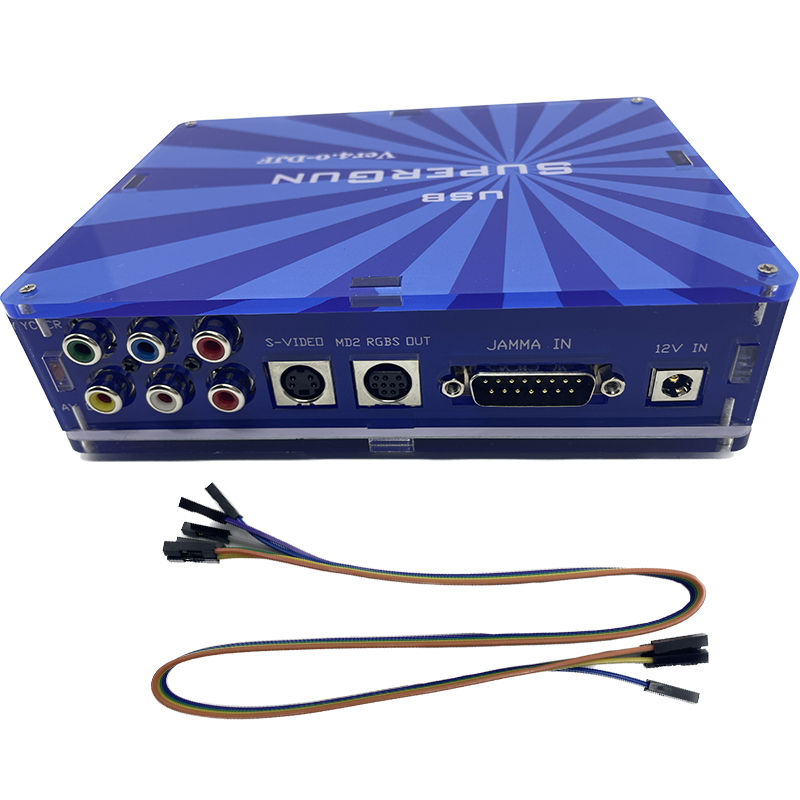

7. MD2 RGBS/SCART interface, you can use Sega md2's RGBS cable and SCART cable to connect to a color monitor or a TV with a SCART device. The cable can be used for private chat if necessary.
8. S terminal/A micro video output, which can be connected to TV with S terminal and A micro video. Generally, A micro video is not built, because each substrate and cbox will have a certain frequency error effect.
9. The ycbcr component output can be connected, and some TVs may not support it.

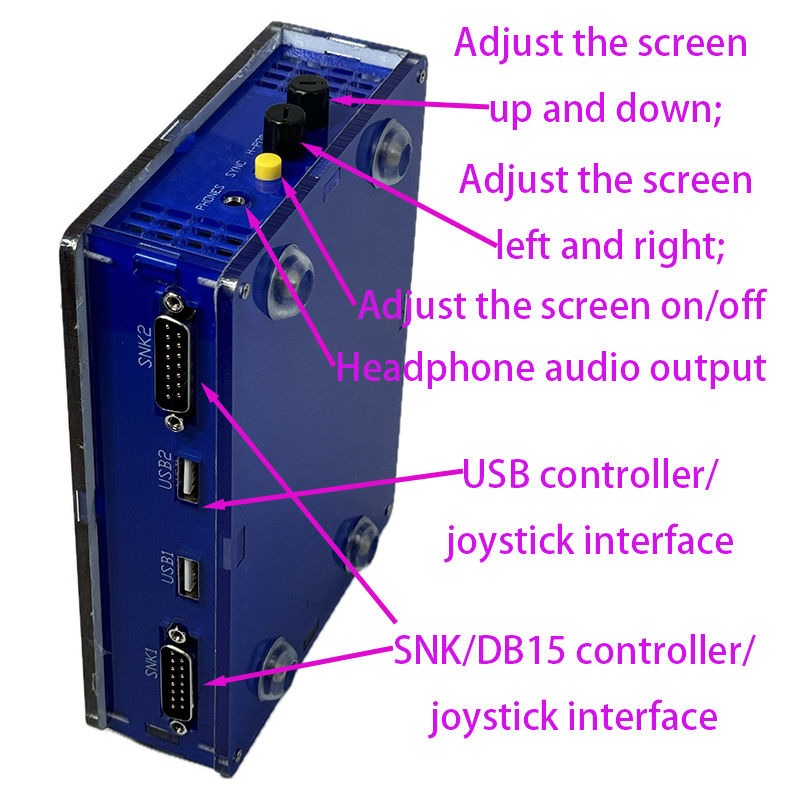

10. The function of adjusting the picture position, the picture can be adjusted up, down, left and right, which can solve some compatibility problems such as the distortion of the black screen of the substrate.

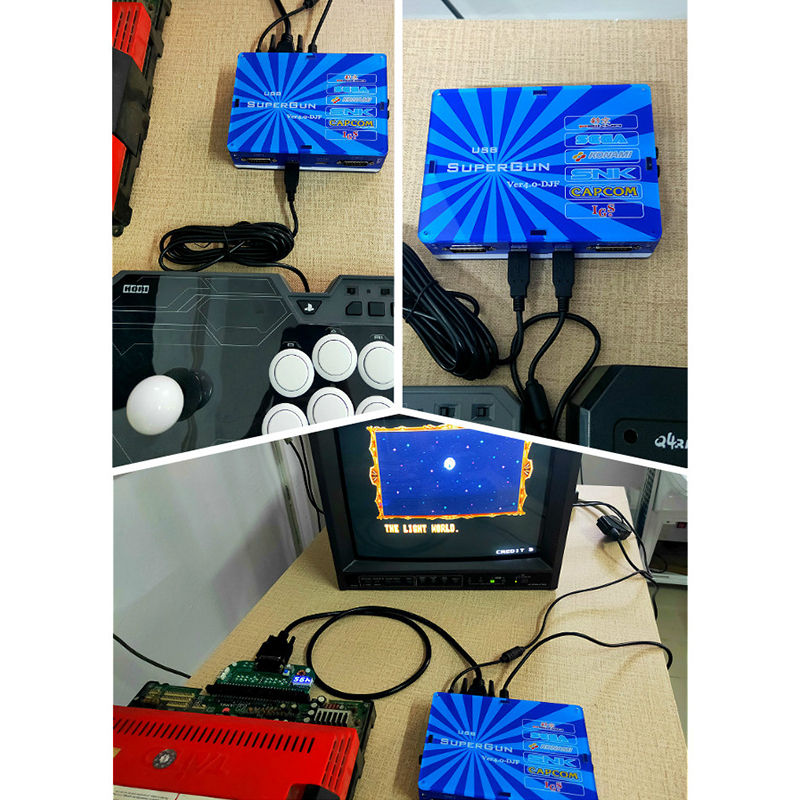

11. Compatible with a variety of commonly used substrates and decks.
